C86300锰青铜是什么？高强度铜合金性能、应用全解析

C86300，常被称为“高强度锰青铜”，是铜合金家族中的一个杰出代表。尽管其名称中含有“青铜”，但从技术上讲，它是一种黄铜（一种铜锌合金），并添加了大量的锰、铁和铝。它以其卓越的强度、耐磨性和承载能力而闻名，使其成为最苛刻机械应用的首选材料。

C86300为何备受推崇？

C86300的主要优势在于它独特地结合了通常只有在钢材中才具备的性能，同时还保留了铜合金的额外好处：

• 极高的强度和硬度： 它是常用铸造铜合金中强度最高的一种。

• 优异的耐磨和抗咬合性： 在重载以及滑动或轴承应用中表现异常出色。

• 良好的耐腐蚀性： 其耐腐蚀性，尤其是在海水和工业环境中的耐腐蚀性，远优于钢。

• 高承载能力： 能够承受极高压力而不会变形。

• 良好的机械加工性： 尽管强度很高，它仍然可以被加工到精确的公差（在IACS加工性等级中评为20%，其中易切削黄铜为100%）。

化学成分（ASTM B505标准）

C86300的性能直接源于其精心平衡的化学成分。

关键机械与物理性能

C86300通常在铸态或热处理状态下使用，以最大化其强度。

常见应用：C86300用于何处？

C86300被指定用于需要高强度、耐久性以及耐磨损和耐腐蚀的部件。其最著名的应用是在重型机械中。

• 蜗轮： 是最主要的应用。其高强度、与钢制蜗杆配对时优异的耐磨性以及良好的润滑性，使其成为高扭矩齿轮箱的理想选择。

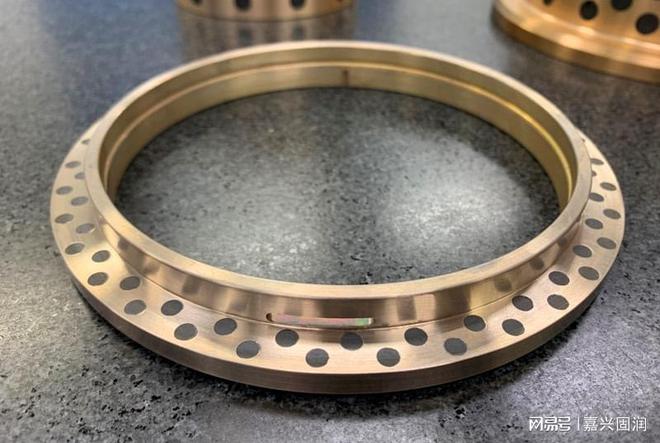

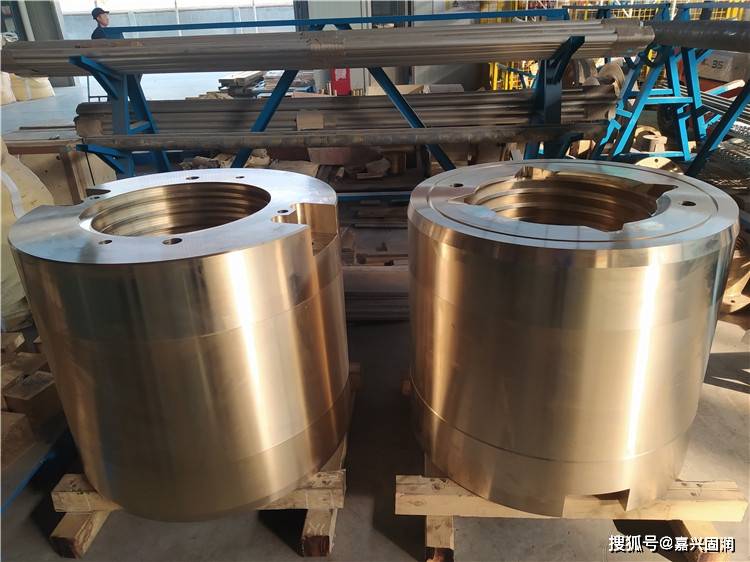

• 轴套和轴承： 特别是在高负载、低转速的应用中，如起重机滑轮、轧机轴承和重型工程机械。

• 螺旋桨毂和船舶部件： 其耐腐蚀性和高强度使其适用于关键的船舶硬件。

• 液压组件： 用于需要承受高压的泵零件、阀体和活塞。

• 采矿与工程机械： 挖掘机、破碎机和钻机中的齿轮、小齿轮和轴套。

• 飞机起落架部件： 某些高应力零件，其不产生火花的特性也是一个优点。

制造与加工注意事项

• 铸造： C86300几乎完全用作铸造合金。通常通过砂型铸造、离心铸造和连续铸造来生产用于后续机械加工的棒材和管材。

• 机械加工： 虽然可加工，但其高强度要求 rigid 的机床配置、正前角硬质合金刀具才能获得最佳效果。其可加工性低于含铅青铜（如C93200）。

• 热处理： 可以通过热处理（固溶处理和时效）来进一步提高其机械性能，尽管它经常在铸态下使用。

• 连接： 它可以进行焊接和钎焊，但需要特定的技术以及与复杂成分兼容的焊料。不推荐软钎焊。

• 耐腐蚀性： 对海水、碱性溶液和许多有机化学品具有良好的耐受性。不适用于酸性环境或含氨环境。

优点与缺点

与其他合金的比较

• 与 C93200 (SAE 660 轴承青铜) 对比： C93200 具有极佳的可加工性和良好的轴承性能，但强度和硬度远低于 C86300。当 C93200 在高应力下会失效时，会选择 C86300。

• 与 C95500 (铝青铜) 对比： 两者都是高强度合金，但 C95500 通常提供更好的耐腐蚀性，尤其是对酸性和含硫环境，而 C86300 在与钢配对时通常具有更好的耐磨性。

• 与钢对比： C86300 在与钢材配对运行时，提供了耐腐蚀性和卓越的抗咬合性能，这是在齿轮和轴承应用中的关键特性。

总结

C86300锰青铜是高强度铜合金中的主力。 当一个应用挑战强度和耐磨性的极限，但又需要铜基材料的耐腐蚀性或抗咬合性能时，C86300 通常是默认且最优的选择。它在重型蜗轮等关键部件中经过验证的性能，巩固了其作为应对最苛刻工程挑战的优质材料的声誉。

C86300, often referred to as "high-tensile" or "manganese bronze," is a standout alloy in the copper family. Despite its name, it is technically a brass (a copper-zinc alloy) with significant additions of manganese, iron, and aluminum. It is renowned for its exceptional strength, wear resistance, and load-bearing capacity, making it a premier choice for the most demanding mechanical applications.

Why is C86300 So Highly Regarded?

The primary advantage of C86300 is its unique combination of properties, which are typically found in steels, but with the added benefits of a copper alloy:

• Very High Strength and Hardness: It is the strongest of the commonly used cast copper alloys.

• Excellent Wear and Galling Resistance: It performs exceptionally well under heavy loads and in sliding or bearing applications.

• Good Corrosion Resistance: It resists corrosion, particularly in seawater and industrial environments, much better than steel.

• High Load-Carrying Capacity: It can withstand extreme pressure without deforming.

• Good Machinability: Despite its high strength, it can be machined to precise tolerances (rated at 20% on the IACS scale, where free-cutting brass is 100%).

Chemical Composition (ASTM B505 Standard)

The properties of C86300 are a direct result of its carefully balanced composition.

Key Mechanical & Physical Properties

C86300 is typically used in the as-cast or heat-treated condition to maximize its strength.

Common Applications: Where is C86300 Used?

C86300 is specified for components that require high strength, durability, and resistance to wear and corrosion. Its most famous application is in heavy machinery.

• Worm Gears: The premier application. Its combination of high strength, excellent wear resistance against steel worms, and good lubricity makes it ideal for high-torque gearboxes.

• Bushings and Bearings: Especially in high-load, low-speed applications like crane sheaves, rolling mill bearings, and heavy-duty construction equipment.

• Propeller Hubs & Marine Components: Its corrosion resistance and high strength make it suitable for key marine hardware.

• Hydraulic Components: Used for pump parts, valve bodies, and pistons that require high pressure resistance.

• Mining & Construction Equipment: Gears, pinions, and bushings in excavators, crushers, and drills.

• Aircraft Landing Gear Components: Certain high-stress parts where its non-sparking property is also a benefit.

Fabrication and Processing Considerations

• Casting: C86300 is almost exclusively used as a cast alloy. It is commonly cast via sand casting, centrifugal casting, and continuous casting to produce rods and tubes for subsequent machining.

• Machining: While machinable, its high strength requires rigid machine setups, positive rake angles, and carbide tooling for optimal results. Its machinability is lower than leaded bronzes like C93200.

• Heat Treatment: It can be heat-treated (solution treating and aging) to further enhance its mechanical properties, though it is often used in the as-cast state.

• Joining: It can be welded and brazed, but requires specific techniques and filler metals compatible with its complex composition. Soldering is not recommended.

• Corrosion Resistance: It offers good resistance to seawater, alkaline solutions, and many organic chemicals. It is not suitable for acidic environments or those containing ammonia.

Advantages vs. Disadvantages

Comparison with Other Alloys

• vs. C93200 (SAE 660 Bearing Bronze): C93200 has excellent machinability and good bearing properties but is much weaker and softer than C86300. C86300 is chosen when C93200 would fail under high stress.

• vs. C95500 (Aluminum Bronze): Both are high-strength, but C95500 generally offers better corrosion resistance, especially to acids and sour environments, while C86300 often has better wear resistance against steel.

• vs. Steel: C86300 provides corrosion resistance and superior anti-galling properties when run against a steel counterpart, a critical feature in gear and bearing applications.

Conclusion

C86300 Manganese Bronze is the workhorse of high-strength copper alloys. When an application pushes the limits of strength and wear resistance but requires the corrosion resistance or anti-galling properties of a copper-based material, C86300 is often the default and optimal choice. Its proven performance in critical components like heavy-duty worm gears solidifies its reputation as a premium material for the most demanding engineering challenges.
